DTJ12A80 Datasheet, triac equivalent, Din-Tek

PDF File Details

Part number: DTJ12A80

Manufacturer: Din-Tek

File Size: 1.29MB

Download: 📄 Datasheet

Description: TRIAC

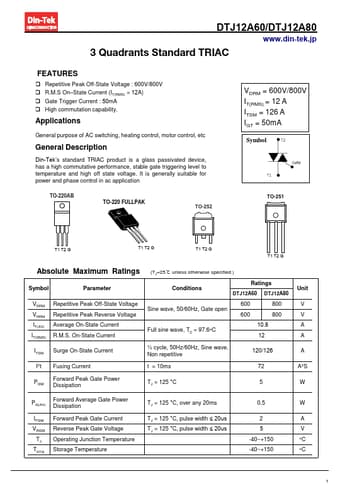

Datasheet Preview: DTJ12A80 📥 Download PDF (1.29MB)

DTJ12A80 Features and benefits

 Repetitive Peak Off-State Voltage : 600V/800V  R.M.S On
  –State Current (IT(RMS) = 12A)  Gate Trigger Current : 50mA  High commutation capability. Appl.

DTJ12A80 Application

General purpose of AC switching, heating control, motor control, etc General Description Din-Tek’s standard TRIAC produc.

DTJ12A80 Description

Din-Tek’s standard TRIAC product is a glass passivated device, has a high commutative performance, stable gate triggering level to temperature and high off state voltage. It is generally suitable for power and phase control in ac application TO-220A.

Image gallery

Page 2 of DTJ12A80 Page 3 of DTJ12A80
