AP6015 - High Efficiency Step-Down Low Power DC-DC Converter

Datasheet Summary

Description

The AP6015 is the first device in a family of low-noise synchronous step-down DC-DC converters.

It is ideally suited for systems powered by either a 1-cell Li-ion battery or a 2- to 3-cell NiCd/ NiMH/ Alkaline battery.

Features

  • High efficiency synchronous step-down converter with greater than 94%.
  • 2.5V to 5.5V operating input voltage range.
  • Adjustable output voltage range from 0.8V to VIN.
  • Fixed output voltage options: 1.8V, 2.5V and 3.3V.
  • Up to 800mA output current.
  • High efficiency over a wide range of load currents.
  • PWM operation mode www. DataSheet4U. com.
  • Internal soft-start function.
  • Typical quiescent current of 150μA.
  • MSOP-10L: Availab.

📥 Download Datasheet

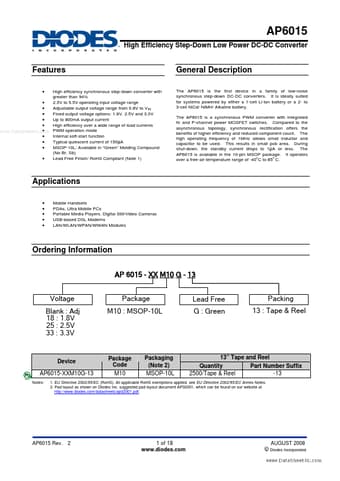

Datasheet preview – AP6015

Datasheet Details

Part number AP6015
Manufacturer DIODES Incorporated
File Size 569.48 KB
Description High Efficiency Step-Down Low Power DC-DC Converter
Datasheet download datasheet AP6015 Datasheet
Additional preview pages of the AP6015 datasheet.
