AZ23C10 - 300mW DUAL SURFACE MOUNT ZENER DIODE

Diodes Incorporated

📥 Download Datasheet

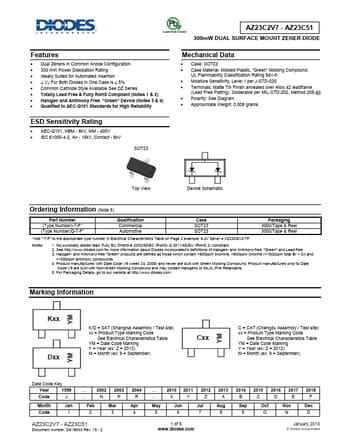

AZ23C10 Datasheet Preview — Preview of AZ23C10 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AZ23C10
Manufacturer	DIODES ↗ Incorporated
File Size	184.82 KB
Description	300mW DUAL SURFACE MOUNT ZENER DIODE
Datasheet	AZ23C10_DiodesIncorporated.pdf

AZ23C10 Product details

Features

Dual Zeners in Common Anode Configuration.
300 mW Power Dissipation Rating.
Ideally Suited for Automated Insertion.
Δ VZ For Both Diodes in One Case is ≤ 5%.
Common Cathode Style Available See DZ Series.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Notes 3 & 4).
Qualified to AEC-Q101 Standards for High Reliability ESD Sensitivity Rating.
AEC-Q101, HBM - 8kV, MM.
