AZ23C10W - 200mW DUAL SURFACE MOUNT ZENER DIODE

Datasheet Summary

Features

Nominal Zener Voltages: 5.6V, 6.8V, 10V, 18V.
Ultra-Small Surface Mount Package.
Ideal For Transient Suppression.
Lead Free/RoHS Compliant (Note 4).
"Green" Device (Note 5 and 6) ESD Sensitivity Rating.
AEC-Q101, HBM - 8kV, MM - 400V (AZ23C5V6W - AZ23C18W).
IEC 61000-4-2, Air - Exceeds 25kV, Contact - 8kV (AZ23C5V6W, AZ23C6V8W).
IEC 61000-4-2, Air - Exceeds 15kV, Contact - 8kV (AZ23C10W, AZ23C18W) AZ23C5V6W, AZ23C6V8W, AZ2.

Datasheet Details

Part number	AZ23C10W
Manufacturer	DIODES Incorporated
File Size	66.66 KB
Description	200mW DUAL SURFACE MOUNT ZENER DIODE
Datasheet	AZ23C10W Datasheet

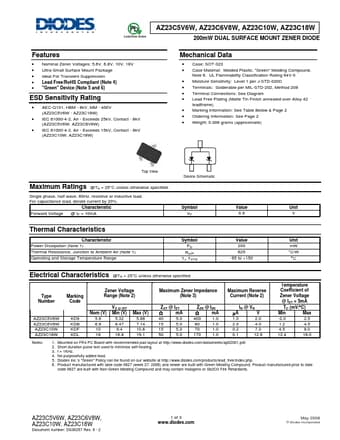

Additional preview pages of the AZ23C10W datasheet.
