DDTC122LU - (DDTCxxxU) NPN PRE-BIASED 100 mA SOT-323 SURFACE MOUNT TRANSISTOR

Key Features

  • Epitaxial Planar Die Construction Complementary PNP Types Available (DDTA) Built-In Biasing Resistors Lead Free/RoHS Compliant (Note 2) "Green" Device (Note 3 & 4) G B C A SOT-323 Dim A B C D E M Min 0.25 1.15 2.00 0.30 1.20 1.80 0.0 0.90 0.25 0.10 0° Max 0.40 1.35 2.20 0.40 1.40 2.20 0.10 1.00 0.40 0.18 8° 0.65 Nominal Mechanical Data.
  • Case: SOT-323 Case Material: Molded Plastic, "Green" Molding Compound, No.

📥 Download Datasheet

Full PDF Text Transcription for DDTC122LU (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for DDTC122LU. For precise diagrams, and layout, please refer to the original PDF.

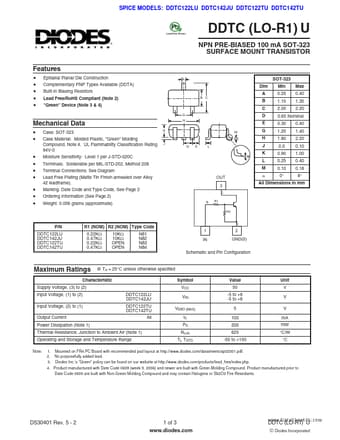

SPICE MODELS: DDTC122LU DDTC142JU DDTC122TU DDTC142TU Lead-free Green DDTC (LO-R1) U NPN PRE-BIASED 100 mA SOT-323 SURFACE MOUNT TRANSISTOR Features · · · · · Epitaxial P...

View more extracted text
100 mA SOT-323 SURFACE MOUNT TRANSISTOR Features · · · · · Epitaxial Planar Die Construction Complementary PNP Types Available (DDTA) Built-In Biasing Resistors Lead Free/RoHS Compliant (Note 2) "Green" Device (Note 3 & 4) G B C A SOT-323 Dim A B C D E M Min 0.25 1.15 2.00 0.30 1.20 1.80 0.0 0.90 0.25 0.10 0° Max 0.40 1.35 2.20 0.40 1.40 2.20 0.10 1.00 0.40 0.18 8° 0.65 Nominal Mechanical Data · · · · · · · · · Case: SOT-323 Case Material: Molded Plastic, "Green" Molding Compound, Note 4.
