DFLS230 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Datasheet Summary

Features

  • Guard Ring Die Construction for Transient Protection Low Power Loss, High Efficiency High Surge Capability High Current Capability and Low Forward Voltage Drop Lead Free Finish, RoHS Compliant (Note 5) "Green" Molding Compound (No Br, Sb) B A D H PowerDIä123 Dim A B C D E Min 3.50 2.60 1.63 0.93 0.85 0.15 0.45.
  • 0.90 Max 3.90 3.00 1.93 1.00 1.25 0.25 0.85.

📥 Download Datasheet

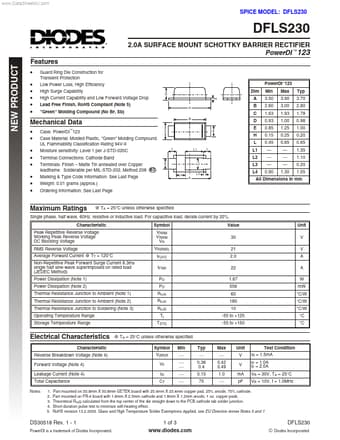

Datasheet preview – DFLS230

Datasheet Details

Part number DFLS230
Manufacturer DIODES Incorporated
File Size 106.46 KB
Description SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet DFLS230 Datasheet
Additional preview pages of the DFLS230 datasheet.
