DFLS230LH - HIGH EFFICIENCY SCHOTTKY BARRIER RECTIFIER

Datasheet Summary

Features

  • Guard Ring Die Construction for Transient Protection Low Power Loss, High Efficiency Very Low VF and High Current Capability Low Leakage Current High Surge Capability Lead Free Finish, RoHS Compliant (Note 4) "Green" Molding Compound (No Br, Sb) Qualified to AEC-Q101 Standards for High Reliability B A D H PowerDIä123 Dim A B C D E C E Min 3.50 2.60 1.63 0.93 0.85 0.15 0.45.

📥 Download Datasheet

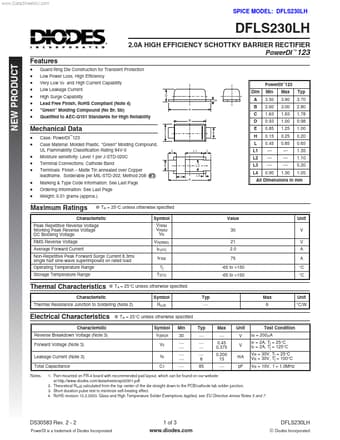

Datasheet preview – DFLS230LH

Datasheet Details

Part number DFLS230LH
Manufacturer DIODES Incorporated
File Size 90.43 KB
Description HIGH EFFICIENCY SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet DFLS230LH Datasheet
