DLP05LC

LOW CAPACITANCE UNIDIRECTIONAL TVS

DLP05LC Features

* 300 Watts Peak Pulse Power (tp = 8x20µs)

* Transient Protection for Data, Signal, and VCC Bus to IEC61000-4-2 Level 4 (ESD) and IEC 61000-4-4 (EFT)

* Low Capacitance, typ. 1.6pF

* Low Leakage Current

* Unidirectional Configuration

* Surface Mount Pac

DLP05LC Datasheet (199.90 KB)

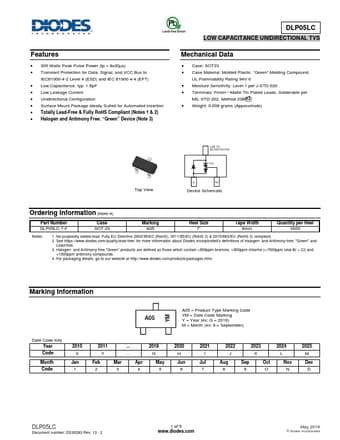

Preview of DLP05LC PDF

Datasheet Details

Part number:

DLP05LC

Manufacturer:

DIODES ↗ Incorporated

File Size:

199.90 KB

Description:

Low capacitance unidirectional tvs.
