GBU602 - 6.0A GLASS PASSIVATED BRIDGE RECTIFIER

Features

  • Glass Passivated Die Construction.
  • High Case Dielectric Strength of 1500 VRMS.
  • Low Reverse Leakage Current.
  • Surge Overload Rating to 175A Peak.
  • Ideal for Printed Circuit Board.

📥 Download Datasheet

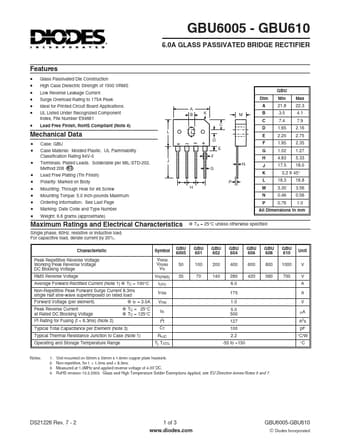

Datasheet preview – GBU602

Datasheet Details

Part number GBU602
Manufacturer Diodes Incorporated
File Size 67.59 KB
Description 6.0A GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet download datasheet GBU602 Datasheet
Additional preview pages of the GBU602 datasheet.

📁 Similar Datasheet

  • GBU602 - 6A Miniature Glass Passivated Single-Phase Bridge Rectifiers (CITC)
  • GBU602 - Single-Phase 6.0A Glass Passivated Bridge Rectifier (Sangdest Microelectronics)
  • GBU602 - GLASS PASSIVATED BRIDGE RECTIFIER (KD)
  • GBU602 - Silicon Bridge Rectifiers (GME)
  • GBU602 - GLASS PASSIVATED BRIDGE RECTIFIERS (LITE-ON)
  • GBU602 - 6.0A Single-Phase Bridge Rectifier (SEP ELECTRONIC)
  • GBU602 - Bridge Rectifier (Yangzhou Yangjie)
  • GBU602 - GLASS PASSIVATED SINGLE-PHASEBRIDGE RECTIFIER (UPM)
  • GBU602 - SINGLE-PHASE BRIDGE RECTIFIER (Suntan)
  • GBU602 - GLASS PASSIVATED BRIDGE RECTIFIERS (Bruckewell)
Other Datasheets by Diodes Incorporated
  • GBU6005 - 6.0A GLASS PASSIVATED BRIDGE RECTIFIER
  • GBU601 - 6.0A GLASS PASSIVATED BRIDGE RECTIFIER
  • GBU604 - 6.0A GLASS PASSIVATED BRIDGE RECTIFIER
  • GBU606 - 6.0A GLASS PASSIVATED BRIDGE RECTIFIER
  • GBU608 - 6.0A GLASS PASSIVATED BRIDGE RECTIFIER
  • GBU610 - 6.0A GLASS PASSIVATED BRIDGE RECTIFIER
  • GBU10005 - 10A GLASS PASSIVATED BRIDGE RECTIFIER
  • GBU1001 - 10A GLASS PASSIVATED BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text
GBU6005 - GBU610 6.0A GLASS PASSIVATED BRIDGE RECTIFIER Features · Glass Passivated Die Construction · High Case Dielectric Strength of 1500 VRMS · Low Reverse Leakage Current · Surge Overload Rating to 175A Peak · Ideal for Printed Circuit Board Applications · UL Listed Under Recognized Component Index, File Number E94661 · Lead Free Finish, RoHS Compliant (Note 4) Mechanical Data · Case: GBU · Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 · Terminals: Plated Leads. Solderable per MIL-STD-202, Method 208 e3 · Lead Free Plating (Tin Finish) · Polarity: Marked on Body · Mounting: Through Hole for #6 Screw · Mounting Torque: 5.0 Inch-pounds Maximum · Ordering Information: See Last Page · Marking: Date Code and Type Number · Weight: 6.
