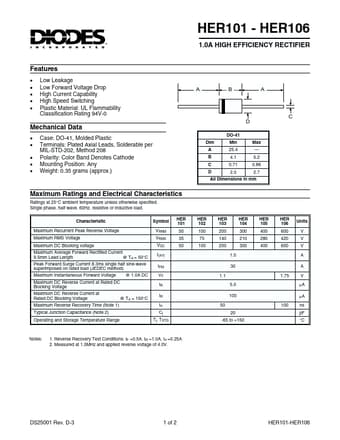

HER101 - HER106
1.0A HIGH EFFICIENCY RECTIFIER Features
· · · · · Low Leakage Low Forward Voltage Drop High Current Capability High Speed Switching Plastic Material: UL Flammability Classification Rating 94V-0
A
B
A
Mechanical Data
· · · · · Case: DO-41, Molded Plastic Terminals: Plated Axial Leads, Solderable per MIL-STD-202, Method 208 Polarity: Color Band Denotes Cathode Mounting Position: Any Weight: 0.35 grams (approx.)
DO-41 Dim A B C D Min 25.4 4.1 0.71 2.0
D
C
Max — 5.2 0.86 2.7
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load.
