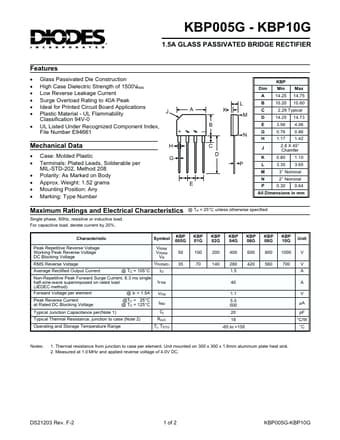

KBP005G - KBP10G
1.5A GLASS PASSIVATED BRIDGE RECTIFIER Features
· · · · · · · Glass Passivated Die Construction High Case Dielectric Strength of 1500V RMS Low Reverse Leakage Current Surge Overload Rating to 40A Peak Ideal for Printed Circuit Board Applications Plastic Material - UL Flammability Classification 94V-0 UL Listed Under Recognized Component Index, File Number E94661
KBP Dim A Min 14.25 10.20 14.25 3.56 0.76 1.17 Max 14.75 10.60 14.73 4.06 0.86 1.42
J
A
K
L
M N
B C D E G H J
2.29 Typical
+
_
B
Mechanical Data
· · · · · · Case: Molded Plastic Terminals: Plated Leads, Solderable per MIL-STD-202, Method 208 Polarity: As Marked on Body Approx. Weight: 1.52 grams Mounting Position: Any Marking: Type Number
H G
C D
P
2.8 X 45° Chamfer 0.80 3.35 1.10 3.
