LT1503G - 1.5A GLASS PASSIVATED RECTIFIER

Datasheet Summary

Features

  • Glass Passivated Die Construction Diffused Junction High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 50A Peak Low Reverse Leakage Current Plastic Material - UL Flammability Classification 94V-0.

📥 Download Datasheet

Datasheet preview – LT1503G

Datasheet Details

Part number LT1503G
Manufacturer DIODES Incorporated
File Size 55.29 KB
Description 1.5A GLASS PASSIVATED RECTIFIER
Datasheet download datasheet LT1503G Datasheet
Additional preview pages of the LT1503G datasheet.

📁 Similar Datasheet

  • LT1500 - Adaptive-Frequency Current Mode Switching Regulators (Linear Technology)
  • LT1501 - Adaptive-Frequency Current Mode Switching Regulators (Linear Technology)
  • LT1505 - Constant-Current/Voltage High Efficiency Battery Charger (Linear Technology)
  • LT1506 - 4.5A/ 500kHz Step-Down Switching Regulator (Linear Technology)
  • LT1507 - 500kHz Monolithic Buck Mode Switching Regulator (Linear Technology)
  • LT1508 - Power Factor and PWM Controller(Voltage Mode) (Linear Technology)
  • LT1509 - Power Factor and PWM Controller (Linear Technology)
  • LT150A - 3 Amp Positive Adjustable Regulator (Linear Technology)
  • LT150X1-151 - TFT LCD (Samsung)
  • LT150X3-124 - TFT LCD (Samsung)
Other Datasheets by Diodes Incorporated
  • LT1501G - 1.5A GLASS PASSIVATED RECTIFIER
  • LT1502G - 1.5A GLASS PASSIVATED RECTIFIER
  • LT1504G - 1.5A GLASS PASSIVATED RECTIFIER
  • LT1505G - 1.5A GLASS PASSIVATED RECTIFIER
  • LT1506G - 1.5A GLASS PASSIVATED RECTIFIER
  • LT1507G - 1.5A GLASS PASSIVATED RECTIFIER

Full PDF Text Transcription

Click to expand full text

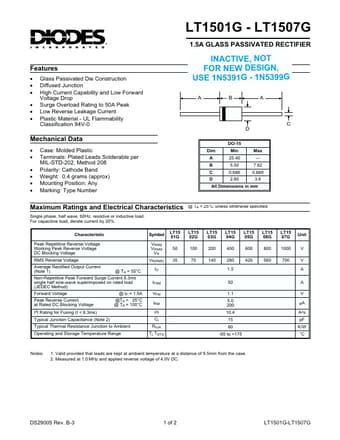

LT1501G - LT1507G 1.5A GLASS PASSIVATED RECTIFIER Features · · · · · · Glass Passivated Die Construction Diffused Junction High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 50A Peak Low Reverse Leakage Current Plastic Material - UL Flammability Classification 94V-0 INACTIVE, NOT FOR NEW DESIGN, USE 1N5391G - 1N5399G A B A D DO-15 Dim A B C D Min 25.40 5.50 0.686 2.60 Max — 7.62 0.889 3.6 C Mechanical Data · · · · · · Case: Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Weight: 0.4 grams (approx) Mounting Position: Any Marking: Type Number All Dimensions in mm Maximum Ratings and Electrical Characteristics Single phase, half wave, 60Hz, resistive or inductive load.
