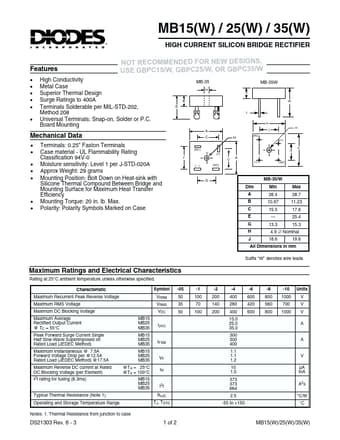

MB35
Features
- -
- -
- -
NOT REMENDED FOR NEW DESIGNS, USE GBPC15/W, GBPC25/W, OR GBPC35/W
MB-35
High Conductivity Metal Case Superior Thermal Design Surge Ratings to 400A Terminals Solderable per MIL-STD-202, Method 208 Universal Terminals; Snap-on, Solder or P.C. Board Mounting
MB-35W
Mechanical Data
- -
- -
- Terminals: 0.25" Faston Terminals Case material
- UL Flammability Rating Classification 94V-0 Moisture sensitivity: Level 1 per J-STD-020A Approx Weight: 29 grams Mounting Position: Bolt Down on Heat-sink with Silicone Thermal pound Between Bridge and Mounting Surface for Maximum Heat Transfer Efficiency Mounting Torque: 20 in. lb. Max. Polarity: Polarity Symbols Marked on Case
(AC)
(AC) (+) K A
(-)
(+)
(AC)
(-)
(AC)
MB-35/W Dim A B C E G H J Min 28.4 10.97 15.5
- 13.3 18.6 Max 28.7 11.23 17.6 25.4 15.3 19.6
- -
4.9 Æ Nominal
All Dimensions in mm Suffix “W” denotes wire leads
Maximum Ratings and Electrical Characteristics
Rating...
