MBR1560CT - 15A SCHOTTKY BARRIER RECTIFIER

Description

and Applications The MBR1545CT & MBR1560CT are designed to meet the stringent requirements of commercial applications, such as: Polarity Protection Diodes Re-Circulating Diodes Switching Diodes Mechanical Data Case: TO220AB

Case Material: Molded Plastic.

Features

  • Guard Ring Die Construction for Transient Protection.
  • Low Power Loss, High Efficiency.
  • High Surge Capability.
  • High Current Capability and Low Forward Voltage Drop.
  • For Use in Low-Voltage, High Frequency Inverters, and Free Wheeling Diodes.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.

📥 Download Datasheet

Datasheet preview – MBR1560CT

Datasheet Details

Part number MBR1560CT
Manufacturer Diodes Incorporated
File Size 402.39 KB
Description 15A SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet MBR1560CT Datasheet

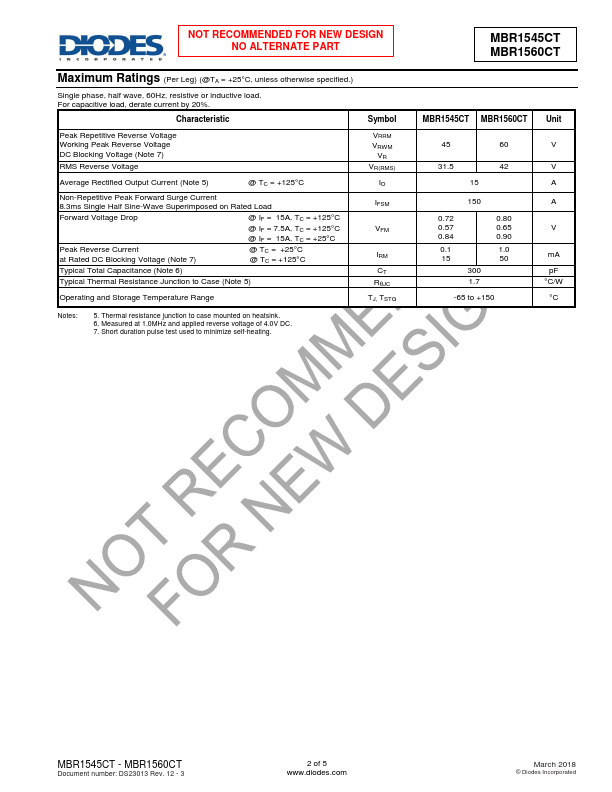

Additional preview pages of the MBR1560CT datasheet.

📁 Similar Datasheet

  • MBR1560CT - SCHOTTKY RECTIFIER (General Semiconductor)
  • MBR1560CT - Schottky Rectifiers (Fairchild Semiconductor)
  • MBR1560CT - Schottky Barrier Rectifier (MCC)
  • MBR1560CT - Dual Common Cathode Schottky Rectifier (Taiwan Semiconductor Company)
  • MBR1560CT - 15A Schottky Barrier Rectifiers (TAITRON)
  • MBR1560CT - SCHOTTKY RECTIFIER (SANGDEST MICROELECTRONICS)
  • MBR1560CT - SCHOTTKY BARRIER TYPE DIODE (KEC)
  • MBR1560CT - Schottky Barrier Rectifier (GME)
  • MBR1560CT - SCHOTTKY RECTIFIER (Multicomp)
  • MBR1560CT - SCHOTTKY BARRIER RECTIFIERS (GALAXY ELECTRICAL)
Other Datasheets by Diodes Incorporated
  • MBR1530CT - Schottky Barrier Rectifier
  • MBR1535CT - Schottky Barrier Rectifier
  • MBR1540CT - 15A SCHOTTKY BARRIER RECTIFIER
  • MBR1540CT - Schottky Barrier Rectifier
  • MBR1545CT - 15A SCHOTTKY BARRIER RECTIFIER
  • MBR1550CT - Schottky Barrier Rectifier
  • MBR10100C - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER
  • MBR10100CT - (MBR1070CT - MBR10100CT) HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text
Product Summary VRRM (V) 45 60 IO (A) 15 15 NOT RECOMMENDED FOR NEW DESIGN NO ALTERNATE PART MBR1545CT Green MBR1560CT 15A SCHOTTKY BARRIER RECTIFIER VF Max (V) @ +25°C 0.84 0.90 IR Max (mA) @ +25°C 0.1 1.0 Features and Benefits  Guard Ring Die Construction for Transient Protection  Low Power Loss, High Efficiency  High Surge Capability  High Current Capability and Low Forward Voltage Drop  For Use in Low-Voltage, High Frequency Inverters, and Free Wheeling Diodes  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free.
