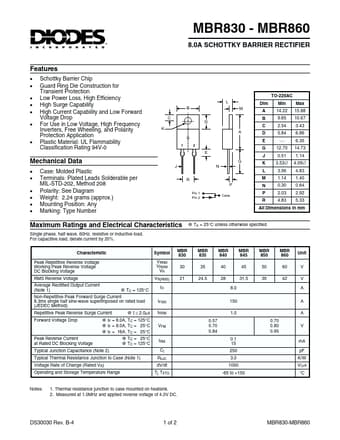

MBR830 - MBR860
8.0A SCHOTTKY BARRIER RECTIFIER Features
· · · · · · · Schottky Barrier Chip Guard Ring Die Construction for Transient Protection Low Power Loss, High Efficiency High Surge Capability High Current Capability and Low Forward Voltage Drop For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application Plastic Material: UL Flammability Classification Rating 94V-0
TO-220AC
L B C K D A
1 2
Dim
M
Min 14.22 9.65 2.54 5.84 ¾ 12.70 0.51 3.53Æ 3.56 1.14 0.30 2.03 4.83
Max 15.88 10.67 3.43 6.86 6.35 14.73 1.14 4.09Æ 4.83 1.40 0.64 2.92 5.33
A B C D E G J
E J R
Pin 1 Pin 2
Mechanical Data
· · · · · · Case: Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: See Diagram Weight: 2.24 grams (approx.
