MMBT2222AT - NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Datasheet Summary

Features

  • BVCEO > 40V.
  • IC = 600mA Collector Current.
  • Epitaxial Planar Die Construction.
  • Ultra-Small Surface Mount Package.
  • Complementary PNP Type: MMBT2907AT.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability MMBT2222AT 40V NPN SMALL SIGNAL.

📥 Download Datasheet

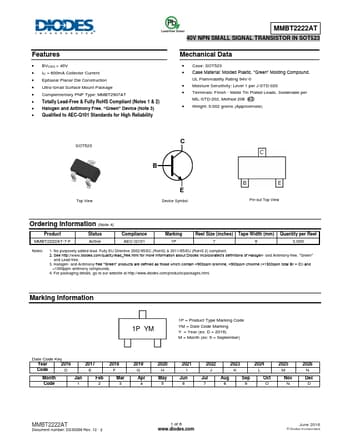

Datasheet preview – MMBT2222AT
