MUR140 - 1.0A SUPER-FAST RECTIFIER

Datasheet Summary

Features

  • Glass Passivated Die Construction Super-Fast Recovery Time For High Efficiency Low Forward Voltage Drop and High Current Capability Surge Overload Rating to 35A Peak Ideally Suited for Automated Assembly Lead Free Finish, RoHS Compliant (Note 5) C A B A Mechanical Data.
  • Case: DO-41 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals:.

📥 Download Datasheet

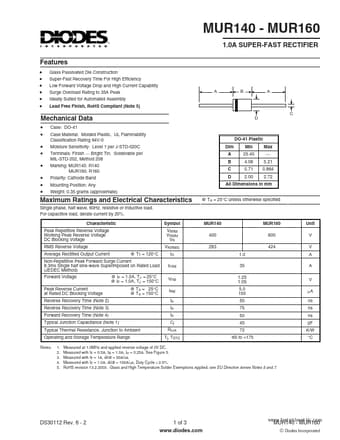

Datasheet preview – MUR140

Datasheet Details

Part number MUR140
Manufacturer DIODES Incorporated
File Size 84.59 KB
Description 1.0A SUPER-FAST RECTIFIER
Datasheet download datasheet MUR140 Datasheet
Additional preview pages of the MUR140 datasheet.

📁 Similar Datasheet

  • MUR140 - 1 AMP ULTRA FAST RECTIFIER (Digitron Semiconductors)
  • MUR140 - SURFACE MOUNT ULTRA FAST RECOVERY RECTIFIER (PowerSilicon)
  • MUR140 - SUPER FAST RECTIFIER (MIC)
  • MUR140 - 1.0A Sintered Glass Passivated Ultra Fast Recovery Rectifier (TAITRON)
  • MUR140 - 1 Amp Super Fast Recovery Rectifier (MCC)
  • MUR140 - 1.0 AMPS ULTRA FAST RECTIFIERS (Jinan Gude Electronic Device)
  • MUR140 - Power Rectifiers (ON Semiconductor)
  • MUR140 - ULTRAFAST RECTIFIERS (Motorola)
  • MUR140 - Super Fast Rectifiers (Luguang Electronic)
  • MUR140 - SUPER FAST RECTIFIER (GALAXY ELECTRICAL)
Other Datasheets by Diodes Incorporated
  • MUR120 - 1.0A SUPER-FAST RECTIFIER
  • MUR160 - 1.0A SUPER-FAST RECTIFIER
  • MUR460 - 40A SUPER-FAST RECTIFIER
  • MURB1610CT - 16A SURFACE MOUNT SUPER-FAST RECTIFIER
  • MURB1620CT - 16A SURFACE MOUNT SUPER-FAST RECTIFIER
  • MURS120 - 1.0A SURFACE MOUNT SUPER-FAST RECTIFIER
  • MURS140 - 1.0A SURFACE MOUNT SUPER-FAST RECTIFIER
  • MURS150 - 1.0A SURFACE MOUNT SUPER-FAST RECTIFIER

Full PDF Text Transcription

Click to expand full text
MUR140 - MUR160 1.0A SUPER-FAST RECTIFIER Features · · · · · · Glass Passivated Die Construction Super-Fast Recovery Time For High Efficiency Low Forward Voltage Drop and High Current Capability Surge Overload Rating to 35A Peak Ideally Suited for Automated Assembly Lead Free Finish, RoHS Compliant (Note 5) C A B A Mechanical Data · · · · · · · · Case: DO-41 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Finish ¾ Bright Tin. Solderable per MIL-STD-202, Method 208 Marking: MUR140: R140 MUR160: R160 Polarity: Cathode Band Mounting Position: Any Weight: 0.35 grams (approximate) Dim A B C D D DO-41 Plastic Min 25.40 4.06 0.71 2.00 Max ¾ 5.21 0.864 2.
