SA20CA - 500W TRANSIENT VOLTAGE SUPPRESSOR

Name: SA20CA
SKU: SA20CA-483616

Diodes Incorporated

The SA20CA by Diodes Incorporated is a 500W TRANSIENT VOLTAGE SUPPRESSOR. Below is the official datasheet preview.

Datasheet Details

Part number	SA20CA
Manufacturer	DIODES Incorporated
File Size	66.31 KB
Description	500W TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	SA20CA_DiodesIncorporated.pdf

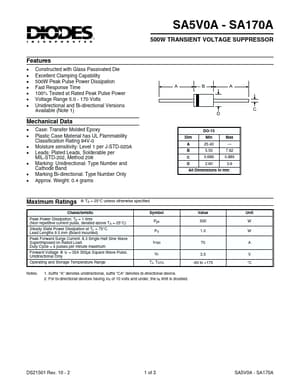

Additional preview pages of the SA20CA datasheet.

Constructed with Glass Passivated Die Excellent Clamping Capability 500W Peak Pulse Power Dissipation Fast Response Time 100% Tested at Rated Peak Pulse Power Voltage Range 5.0 - 170 Volts Unidirectional and Bi-directional Versions Available (Note 1) A B A D C Mechanical Data.
Case: Transfer Molded Epoxy Plastic Case Material has UL Flammability Classification Rating 94V-0 Moisture sensitivity: Level 1 per J.
