SBR20100CTFP - Super Barrier Rectifier

This page provides the datasheet information for the SBR20100CTFP, a member of the SBR20100CT Super Barrier Rectifier family.

Datasheet Summary

Description

The SBR20100CT & SBR20100CTFP provide very low VF and excellent reverse leakage stability at high temperatures.

DC-DC Converters AC-DC Adaptors SBR20100CT SBR20100CTFP 20A SBR SUPER BARRIER RE

Features

  • Patented SBR® technology provides superior avalanche capability versus Schottky diodes, ensuring more rugged and reliable end.

📥 Download Datasheet

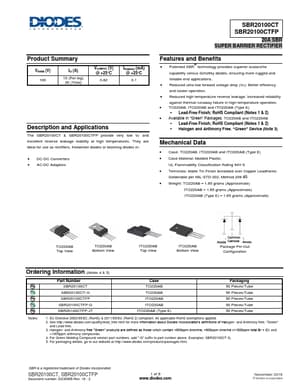

Datasheet preview – SBR20100CTFP

Datasheet Details

Part number SBR20100CTFP
Manufacturer DIODES Incorporated
File Size 464.62 KB
Description Super Barrier Rectifier
Datasheet download datasheet SBR20100CTFP Datasheet
Additional preview pages of the SBR20100CTFP datasheet.

📁 Similar Datasheet

Other Datasheets by Diodes Incorporated

Full PDF Text Transcription

Click to expand full text
Product Summary VRRM (V) 100 IO (A) 10 (Per leg) 20 (Total) VF(MAX) (V) @ +25°C 0.82 IR(MAX) (mA) @ +25°C 0.1 Description and Applications The SBR20100CT & SBR20100CTFP provide very low VF and excellent reverse leakage stability at high temperatures. They are ideal for use as rectifiers, freewheel diodes or blocking diodes in:  DC-DC Converters  AC-DC Adaptors SBR20100CT SBR20100CTFP 20A SBR SUPER BARRIER RECTIFIER Features and Benefits  Patented SBR® technology provides superior avalanche capability versus Schottky diodes, ensuring more rugged and reliable end applications.  Reduced ultra-low forward voltage drop (VF); Better efficiency and cooler operation.
