SF13 - 1.0A SUPER-FAST RECOVERY RECTIFIER

Product Overview

Diodes Incorporated

Part number	SF13
Manufacturer	DIODES Incorporated
File Size	58.70 KB
Description	1.0A SUPER-FAST RECOVERY RECTIFIER
Datasheet	SF13 Datasheet

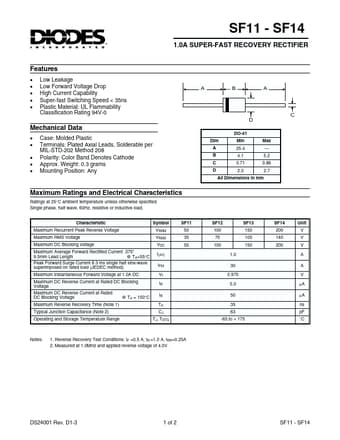

Additional preview pages of the SF13 datasheet.

Low Leakage Low Forward Voltage Drop High Current Capability Super-fast Switching Speed < 35ns Plastic Material: UL Flammability Classification Rating 94V-0 A B A D C Mechanical Data.
DO-41 Case: Molded Plastic Terminals: Plated Axial Leads, Solderable per MIL-STD-202 Method 208 Polarity: Color Band Denotes Cathode Approx. Weight: 0.3 grams Mounting Position: Any Dim A B C D Min 25.4 4.1 0.71 2.0 Max.
5.2 0.86 2.7 All.
