ZMM12 - 500mW SURFACE MOUNT ZENER DIODE

Diodes Incorporated

📥 Download Datasheet

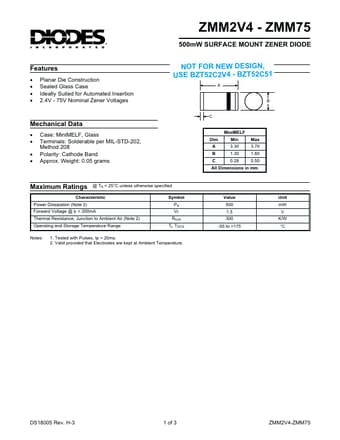

ZMM12 Datasheet Preview — Preview of ZMM12 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ZMM12
Manufacturer	DIODES ↗ Incorporated
File Size	59.84 KB
Description	500mW SURFACE MOUNT ZENER DIODE
Datasheet	ZMM12_DiodesIncorporated.pdf

ZMM12 Product details

Features

Planar Die Construction Sealed Glass Case Ideally Suited for Automated Insertion 2.4V - 75V Nominal Zener Voltages NOT FOR NEW DESIGN, USE BZT52C2V4 - BZT52C51 A B C Mechanical Data.
Case: MiniMELF, Glass Terminals: Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Approx. Weight: 0.05 grams MiniMELF Dim A B C Min 3.30 1.30 0.28 Max 3.70 1.60 0.50 All Dimensions in mm Maximum Ratings Power Dissipation (Note 2) @ TA = 25°C unless oth.
