1.5KE33CA, 1.5KE400A Datasheet - Diodes

1.5KE33CA, 1.5KE400A, 1500W TRANSIENT VOLTAGE SUPPRESSOR

1.5KE6V8(C)A - 1.5KE400(C)A 1500W TRANSIENT VOLTAGE SUPPRESSOR .

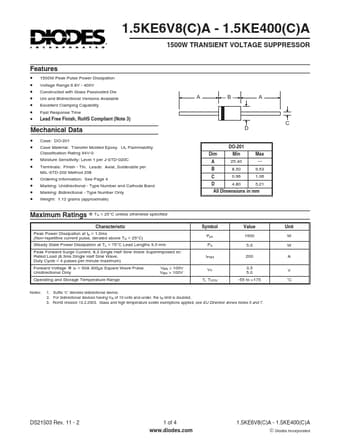

 Datasheet Preview Page 1

1.5KE400A-Diodes.pdf

This datasheet PDF includes multiple part numbers: 1.5KE33CA, 1.5KE400A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1.5KE33CA, 1.5KE400A

Manufacturer:

DIODES ↗

File Size:

296.34 KB

Description:

1500W TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: 1.5KE33CA, 1.5KE400A.
Please refer to the document for exact specifications by model.

Features

* 1500W Peak Pulse Power Dissipation
* Voltage Range 6.8V - 400V
* Constructed with Glass Passivated Die
* Uni and Bidirectional Versions Available
* Excellent Clamping Capability
* Fast Response Time
* Lead Free Finish, RoHS Compliant (Note 3) Mechanical Data
* Case:
