74LV32A

QUADRUPLE 2-INPUT OR GATES

74LV32A Features

* Wide Supply Voltage Range from 2.0V to 5.5V

* Sinks or sources 12mA at VCC = 4.5V

* CMOS low power consumption

* IOFF Supports Partial -Power Down Operation

* Inputs or Outputs accept up to 5.5V

* Inputs can be driven by 3.3V or 5V allowing for voltage translation applicati

74LV32A General Description

The 74LV32A provides provides four independent 2-input OR gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 5.5V. Pin Assignments The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The devic.

74LV32A Datasheet (306.04 KB)

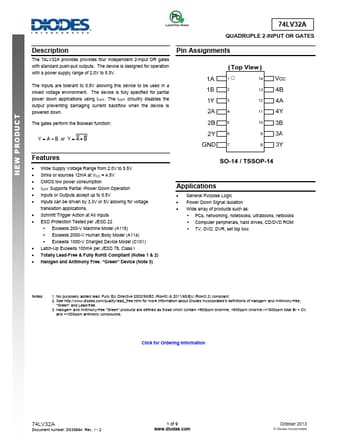

Preview of 74LV32A PDF

Datasheet Details

Part number:

74LV32A

Manufacturer:

DIODES ↗

File Size:

306.04 KB

Description:

Quadruple 2-input or gates.
