AA4003 - 2W STEREO AUDIO POWER AMPLIFIER

Product Overview

Diodes

Datasheet Details

Part number	AA4003
Manufacturer	DIODES
File Size	519.29 KB
Description	2W STEREO AUDIO POWER AMPLIFIER
Datasheet	AA4003 Datasheet

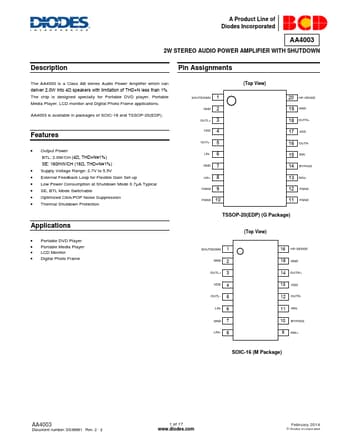

Additional preview pages of the AA4003 datasheet.

Product details

Description

Pin Assignments The AA4003 is a Class AB stereo Audio Power Amplifier which can deliver 2.0W into 4Ω speakers with limitation of THD+N less than 1%.The chip is designed specially for Portable DVD player, Portable Media Player, LCD monitor and Digital Photo Frame applications.AA4003 is available in packages of SOIC-16 and TSSOP-20(EDP).

Features

Output Power BTL: 2.0W/CH (4Ω, THD+N≤1%) SE: 160mW/CH (16Ω, THD+N≤1%).
Supply Voltage Range: 2.7V to 5.5V.
External Feedback Loop for Flexible Gain Set-up.
Low Power Consumption at Shutdown Mode 0.7µA Typical.
SE, BTL Mode Switchable.
Optimized Click/POP Noise Suppression.
Thermal Shutdown Protection.
