AH9486 SINGLE PHASE LOW NOISE SMART MOTOR DRIVER

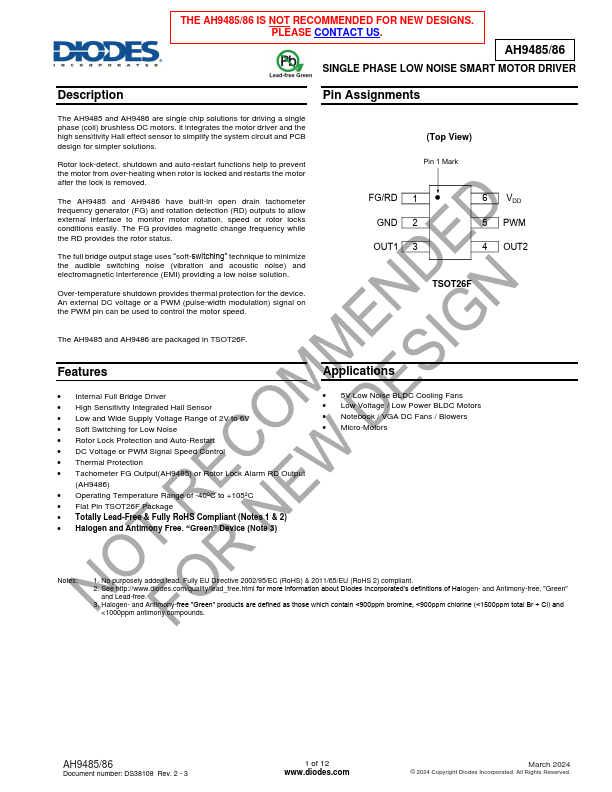

Pin Assignments The AH9485 and AH9486 are single chip solutions for driving a single phase (coil) brushless DC motors. It integrates the motor driver and the high sensitivity Hall effect sensor to simplify the system circuit and PCB design for simpler solutions. Rotor lock-detect, shutdown and aut.

AH9486 Features

* Applications

* Internal Full Bridge Driver

* High Sensitivity Integrated Hall Sensor

* Low and Wide Supply Voltage Range of 2V to 6V

* Soft Switching for Low Noise

* Rotor Lock Protection and Auto-Restart

* DC Voltage or PWM Signal Speed Control

AH9485-Diodes.pdf

This datasheet PDF includes multiple part numbers: AH9486, AH9485. Please refer to the document for exact specifications by model.

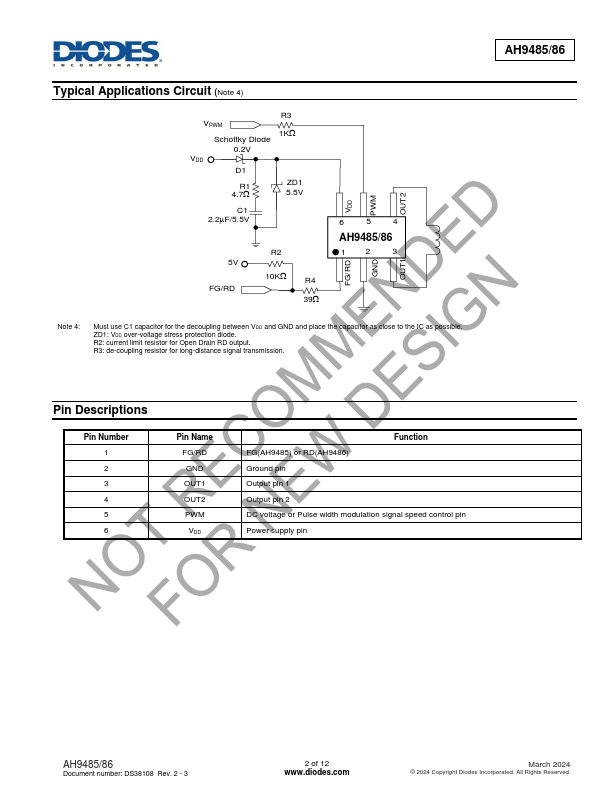

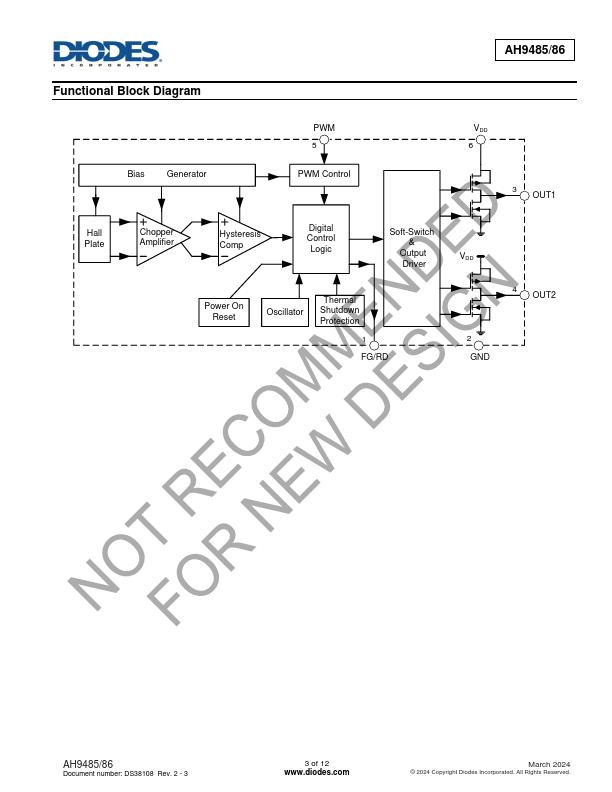

AH9486 Datasheet Preview Page 2 AH9486 Datasheet Preview Page 3

Datasheet Details

Part number:

AH9486, AH9485

Manufacturer:

DIODES ↗

File Size:

496.03 KB

Description:

Single phase low noise smart motor driver.

Note:

This datasheet PDF includes multiple part numbers: AH9486, AH9485.
Please refer to the document for exact specifications by model.
