AL3066 - FOUR-CHANNEL CURRENT SOURCE BOOST LED DRIVER

Description

The AL3066 is a high efficiency 4-channel boost controller for WLED backlight applications.

It operates over a wide input voltage ranged from 4.5V to 33V.

Features

  • include cycle by cycle current limit, softstart, UVLO, programmable OVP, OTP, open/short LED protection, Schottky Diode Short and Open Protection, Inductor Short-Circuit Protection and VOUT Short protection. CH4 1 ISET 2 OVP 3 RT 4 CS 5 OUT 6 VCC 7 HVCC 8 The IC is available in SO-16 package. Features.

📥 Download Datasheet

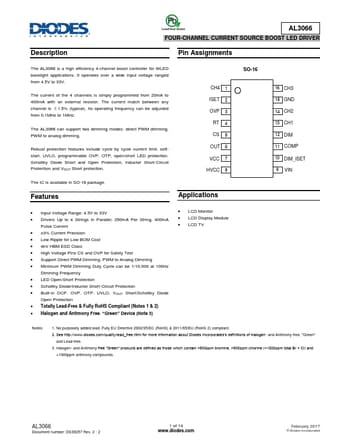

Datasheet preview – AL3066

Datasheet Details

Part number AL3066
Manufacturer Diodes Incorporated
File Size 739.62 KB
Description FOUR-CHANNEL CURRENT SOURCE BOOST LED DRIVER
Datasheet download datasheet AL3066 Datasheet
Additional preview pages of the AL3066 datasheet.

📁 Similar Datasheet

  • AL300 - LCD Monitor Controller (ETC)
  • AL310 - Advanced LCD Controller (Averlogic Technologies)
  • AL3201 - SCR/ or Single Chip Reverb (ETC)
  • AL3201B - DRE Digital Reverb Engine (Wavefront)
  • AL360 - LED FLOOD LIGHT (AREALUX)
  • AL360A - Video Format Converter (Averlogic Technologies)
  • AL37204 - Video ASIC for 4-Channel Multiplexing (Averlogic Technologies)
Other Datasheets by Diodes
  • AL3065 - FOUR-CHANNEL CURRENT SOURCE BOOST LED DRIVER
  • AL3065A - BOOST CONTROLLER
  • AL3069 - FOUR-CHANNEL CURRENT SOURCE BOOST LED DRIVER
  • AL3022 - PWM BOOST CONTROLLER
  • AL3050 - SMALL PANEL BACKLIGHT LED DRIVER
  • AL3157 - HIGH EFFICIENCY 1x/2x CHARGE PUMP LED DRIVER
  • AL3158 - HIGH EFFICIENCY 1x/2x CHARGE PUMP
  • AL3159 - HIGH EFFICIENCY 1x/2x CHARGE PUMP

Full PDF Text Transcription

Click to expand full text
Description AL3066 FOUR-CHANNEL CURRENT SOURCE BOOST LED DRIVER Pin Assignments The AL3066 is a high efficiency 4-channel boost controller for WLED backlight applications. It operates over a wide input voltage ranged from 4.5V to 33V. The current of the 4 channels is simply programmed from 20mA to 400mA with an external resistor. The current match between any channel is ±1.5% (typical). Its operating frequency can be adjusted from 0.1MHz to 1MHz. The AL3066 can support two dimming modes: direct PWM dimming, PWM to analog dimming. Robust protection features include cycle by cycle current limit, softstart, UVLO, programmable OVP, OTP, open/short LED protection, Schottky Diode Short and Open Protection, Inductor Short-Circuit Protection and VOUT Short protection.
