AP22652 - PRECISION ADJUSTABLE CURRENT-LIMITED POWER SWITCHES

Product Overview

Diodes

Datasheet Details

Part number	AP22652
Manufacturer	DIODES
File Size	1.04 MB
Description	PRECISION ADJUSTABLE CURRENT-LIMITED POWER SWITCHES
Datasheet	AP22652 Datasheet

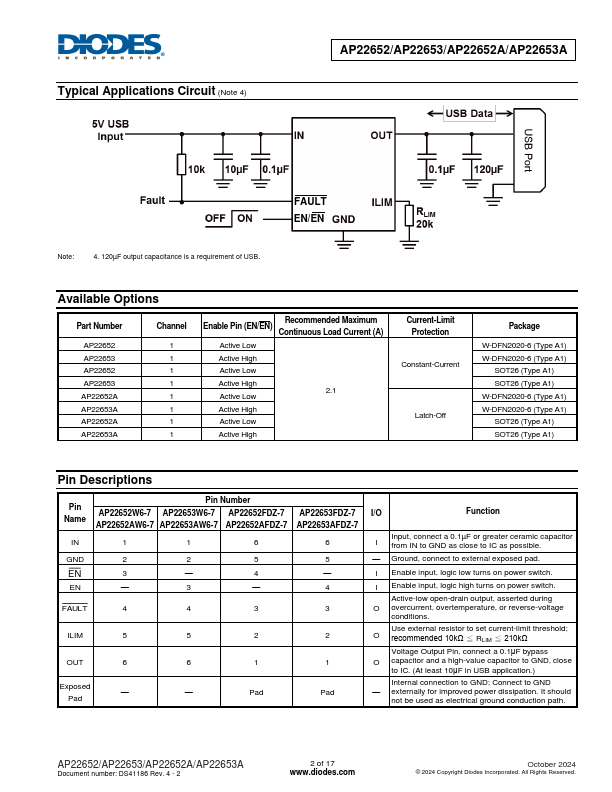

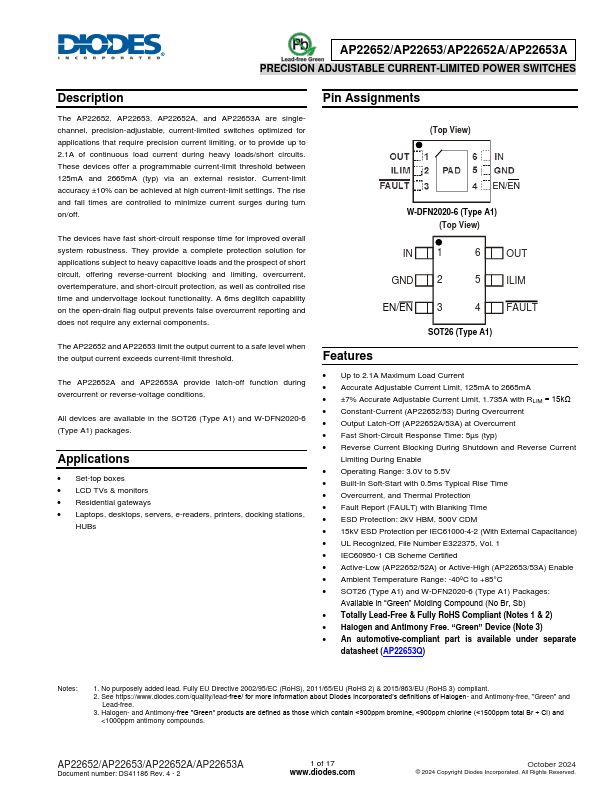

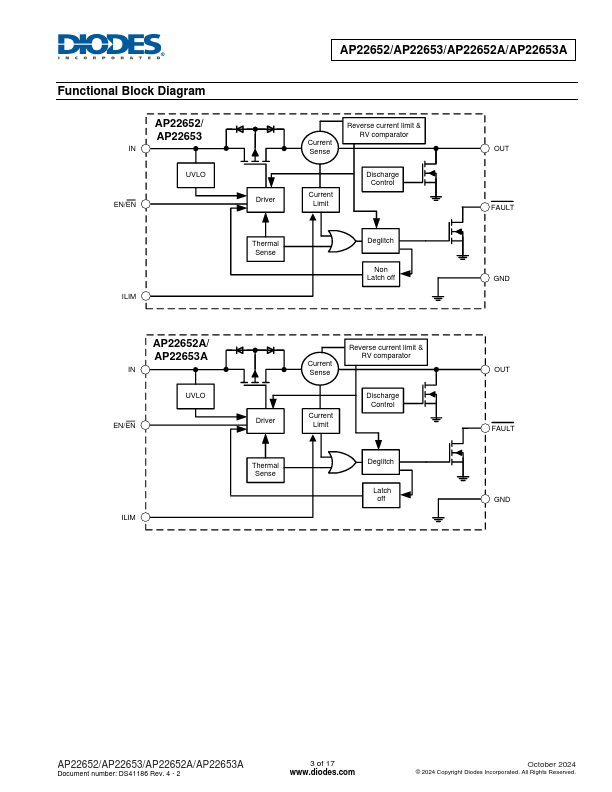

Additional preview pages of the AP22652 datasheet.

Product details

Description

The AP22652, AP22653, AP22652A, and AP22653A are singlechannel, precision-adjustable, current-limited switches optimized for applications that require precision current limiting, or to provide up to 2.1A of continuous load current during heavy loads/short circuits.

Features

Up to 2.1A Maximum Load Current.
Accurate Adjustable Current Limit, 125mA to 2665mA.
±7% Accurate Adjustable Current Limit, 1.735A with RLIM = 15kΩ.
Constant-Current (AP22652/53) During Overcurrent.
Output Latch-Off (AP22652A/53A) at Overcurrent.
Fast Short-Circuit Response Time: 5µs (typ).
Reverse Current Blocking During Shutdown and Reverse Current Limiting During Enable.
Operating Range: 3.0V to 5.5V.
Built-In S.
