AP22653A, AP22652 Datasheet - Diodes

AP22653A, AP22652, PRECISION ADJUSTABLE CURRENT-LIMITED POWER SWITCHES

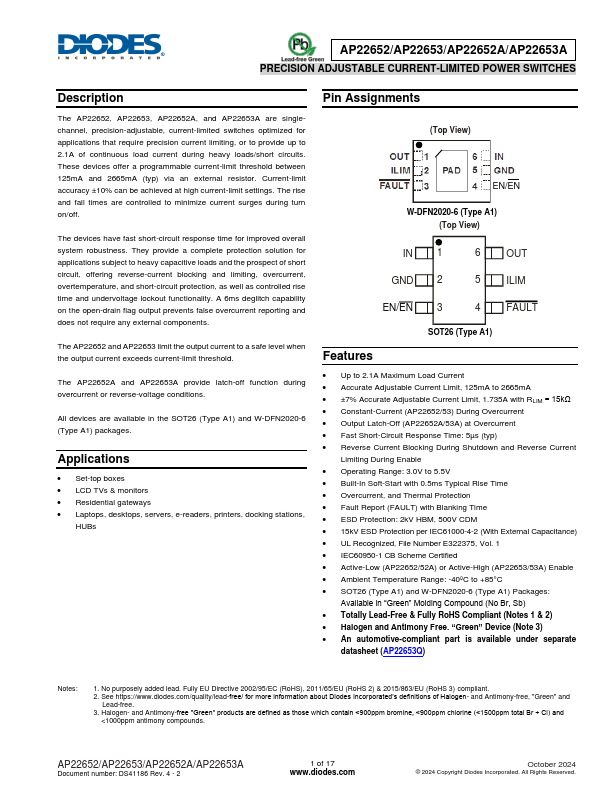

AP22652/AP22653/AP22652A/AP22653A PRECISION ADJUSTABLE CURRENT-LIMITED POWER SWITCHES Description The AP22652, AP22653, AP22652A, and AP22653A are si

Features

* Up to 2.1A Maximum Load Current
* Accurate Adjustable Current Limit, 125mA to 2665mA
* ±7% Accurate Adjustable Current Limit, 1.735A with RLIM = 15kΩ
* Constant-Current (AP22652/53) During Overcurrent
* Output Latch-Off (AP22652A/53A) at Overcurrent

Applications

* that require precision current limiting, or to provide up to 2.1A of continuous load current during heavy loads/short circuits.
These devices offer a programmable current-limit threshold between 125mA and 2665mA (typ) via an external resistor.
Current-limit accuracy ±10% can be achieved at high curr

AP22652-Diodes.pdf

This datasheet PDF includes multiple part numbers: AP22653A, AP22652. Please refer to the document for exact specifications by model.

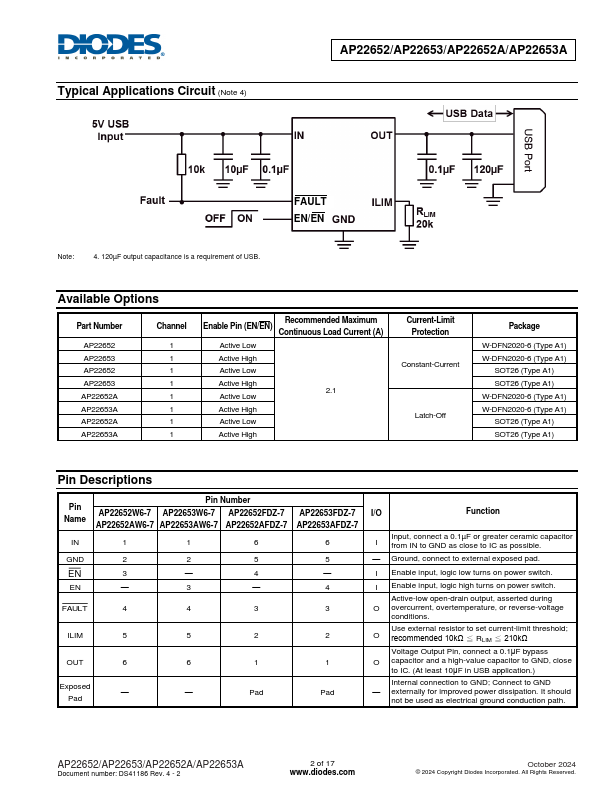

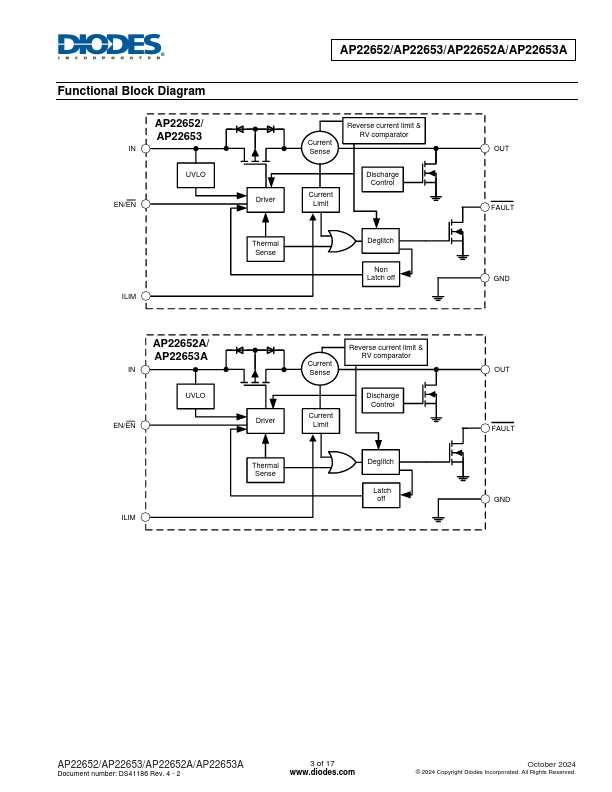

AP22653A Datasheet Preview Page 2 AP22653A Datasheet Preview Page 3

Datasheet Details

Part number:

AP22653A, AP22652

Manufacturer:

DIODES ↗

File Size:

1.04 MB

Description:

Precision adjustable current-limited power switches.

Note:

This datasheet PDF includes multiple part numbers: AP22653A, AP22652.
Please refer to the document for exact specifications by model.
