AP65455 - 650kHz ADAPTIVE COT STEP-DOWN CONVERTER

Diodes

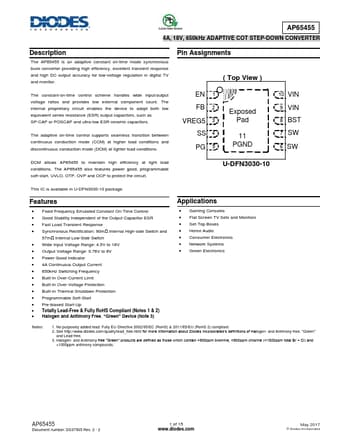

AP65455 Datasheet Preview — Preview of AP65455 PDF

Datasheet Details

Part number	AP65455
Manufacturer	DIODES ↗
File Size	893.71 KB
Description	650kHz ADAPTIVE COT STEP-DOWN CONVERTER
Datasheet	AP65455-Diodes.pdf

AP65455 Product details

Description

The AP65455 is an adaptive constant on-time mode synchronous buck converter providing high efficiency, excellent transient response and high DC output accuracy for low-voltage regulation in digital TV and monitor.

Features

power good, programmable soft-start, UVLO, OTP, OVP and OCP to protect the circuit. U-DFN3030-10 This IC is available in U-DFN3030-10 package. Features.
Fixed Frequency Emulated Constant On-Time Control.
Good Stability Independent of the Output Capacitor ESR.
Fast Load Transient Response.
Synchronous Rectification: 90mΩ Internal High-side Switch and 57mΩ Internal Low-Side Switch.
Wide Input Voltage Range: 4.5V to 18V.
Output Voltage Range: 0.76V to 6V.
Power.
