APX803 - 3-PIN MICROPROCESSOR RESET

Diodes

The APX803 by Diodes is a 3-PIN MICROPROCESSOR RESET. Below is the official datasheet preview.

📥 Download Datasheet

APX803 3-PIN MICROPROCESSOR RESET by Diodes - Datasheet Preview — Official preview page of the APX803 3-PIN MICROPROCESSOR RESET datasheet (Diodes).

Datasheet Details

Part number	APX803
Manufacturer	DIODES
File Size	445.89 KB
Description	3-PIN MICROPROCESSOR RESET
Datasheet	APX803-Diodes.pdf

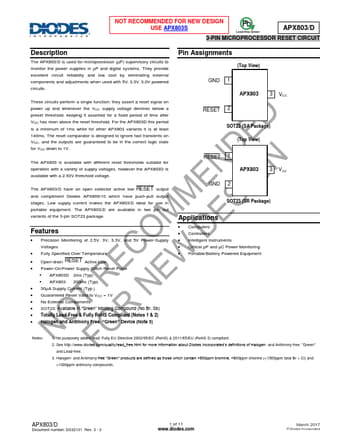

Additional preview pages of the APX803 datasheet.

APX803 Product details

Description

The APX803/D is used for microprocessor (µP) supervisory circuits to monitor the power supplies in µP and digital systems.

Features

Precision Monitoring of 2.5V, 3V, 3.3V, and 5V Power-Supply Voltages.
Fully Specified Over Temperature.
Open-drain RESET Active Low.
Power-On/Power Supply Glitch Reset Pulse.
APX803D 2ms (Typ).
APX803 200ms (Typ).
30µA Supply Current (Typ. ).
Guaranteed Reset Valid to VCC = 1V.
No External Components.
SOT23: Available in “Green” Molding Compound (No Br, Sb).
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Fr.
