B1100BQ Datasheet, Rectifier, Diodes

B1100BQ Features

• Rectifier
• Guard Ring Die Construction for Transient Protection
• Ideally Suited for Automated Assembly
• Low Power Loss, High Efficiency
• Surge Overload Rating

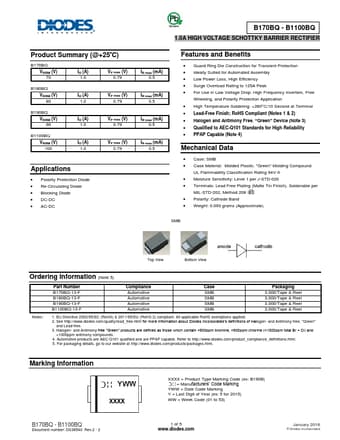

PDF File Details

Part number:

B1100BQ

Manufacturer:

DIODES ↗

File Size:

355.20kb

Download:

📄 Datasheet

Description:

1.0a high voltage schottky barrier rectifier.

B1100BQ Application

• Applications
• Polarity Protection Diode
• Re-Circulating Diode
• Blocking Diode
• DC-DC
• AC-DC Green B170
