B130BQ - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

This page provides the datasheet information for the B130BQ, a member of the B130Q 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER family.

Description

This Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications.

Polarity Protection Diode Re-Circulating Diode Switching Diode Blocking Diode Freewheel Diode Mechanical Data

Features

  • Guard Ring Die Construction for Transient Protection.
  • Ideally Suited for Automated Assembly.
  • Low Power Loss, High Efficiency.
  • Surge Overload Rating to 30A Peak.
  • For Use in Low-Voltage, High-Frequency Inverters.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Notes 3).
  • Qualified to AEC-Q101 Standards for High Reliability.
  • PPAP Capable (Note 4).

📥 Download Datasheet

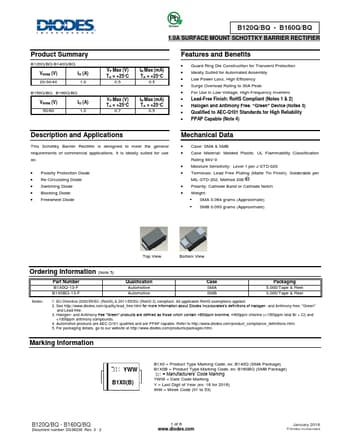

Datasheet preview – B130BQ
