BAT54WQ SURFACE MOUNT SCHOTTKY BARRIER DIODE

BAT54WQ Description

Product Summary (@ +25°C) VR (V) IF (mA) VF Max (mV) @ 1mA 30 200 320 Applications * SMPS * DC-DC converters * Freewhee.

BAT54WQ Features

* Low-Forward Voltage Drop
* Fast Switching
* Ultra-Small Surface-Mount Package
* PN Junction Guard Ring for Transient and ESD Protection
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

BAT54WQ Applications

* SMPS
* DC-DC converters
* Freewheeling diodes
* Reverse-polarity protection

📥 Download Datasheet

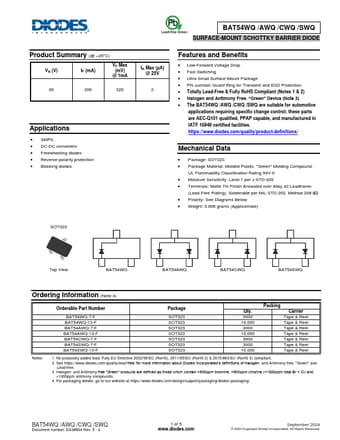

Preview of BAT54WQ PDF
