BC847BFZ - 45V NPN SMALL SIGNAL TRANSISTOR

Product Overview

Diodes

📥 Download Datasheet

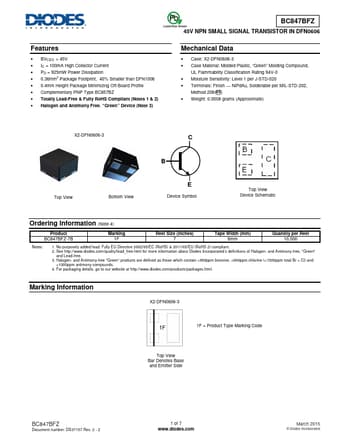

BC847BFZ 45V NPN SMALL SIGNAL TRANSISTOR by Diodes - Datasheet Preview — Datasheet preview – BC847BFZ

Datasheet Details

Part number	BC847BFZ
Manufacturer	DIODES
File Size	207.88 KB
Description	45V NPN SMALL SIGNAL TRANSISTOR
Datasheet	BC847BFZ Datasheet
Additional preview pages of the BC847BFZ datasheet.

Product details

Features

BVCEO > 45V.
IC = 100mA High Collector Current.
PD = 925mW Power Dissipation.
0.36mm2 Package Footprint, 40% Smaller than DFN1006.
0.4mm Height Package Minimizing Off-Board Profile.
Complementary PNP Type BC857BZ.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) BC847BFZ 45V NPN SMALL SIGNAL.
