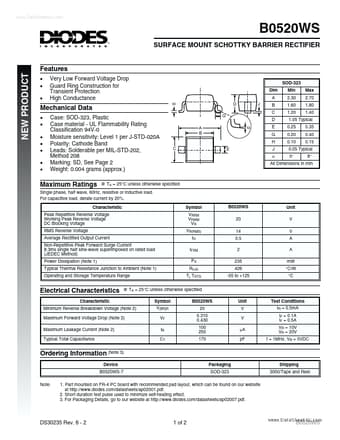

B0520WS
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features
NEW PRODUCT
· · · · · · · · · ·
Very Low Forward Voltage Drop Guard Ring Construction for Transient Protection High Conductance
H G A B C E D
SOD-323 Dim A Min 2.30 1.60 1.20 0.25 0.20 0.10 0° Max 2.70 1.80 1.40 0.35 0.40 0.15 8°
Mechanical Data
Case: SOD-323, Plastic Case material - UL Flammability Rating Classification 94V-0 Moisture sensitivity: Level 1 per J-STD-020A Polarity: Cathode Band Leads: Solderable per MIL-STD-202, Method 208 Marking: SD, See Page 2 Weight: 0.004 grams (approx.)
J
B C D
1.05 Typical
a
E G H J a
0.05 Typical
All Dimensions in mm
Maximum Ratings
@ TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
