D5V0F4U5P5 - 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

Diodes

📥 Download Datasheet

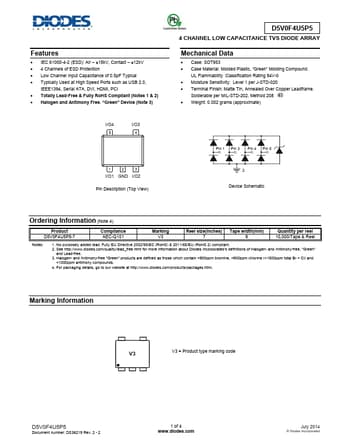

D5V0F4U5P5 Datasheet Preview — Preview of D5V0F4U5P5 PDF

Datasheet Details

Part number	D5V0F4U5P5
Manufacturer	DIODES
File Size	182.85 KB
Description	4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
Datasheet	D5V0F4U5P5-Diodes.pdf

D5V0F4U5P5 Product details

Description

(Top View) D5V0F4U5P5 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY Mechanical Data Case: SOT953 Case Material: Molded Plastic, “Green” Molding Compound. Moisture Sensitivity: Level 1 per J-STD-020 Terminal Finish: Matte Tin, Annealed Over Copper Leadframe. Weight: 0.002 grams (approximate) Pin 1 Pin 3 Pin 4 Pin 5 2 Device Schematic Ordering Information (Note 4) Pro

Features

IEC 61000-4-2 (ESD): Air.
±15kV, Contact.
±12kV.
4 Channels of ESD Protection.
Low Channel Input Capacitance of 0.5pF Typical.
Typically Used at High Speed Ports such as USB 2.0, IEEE1394, Serial ATA, DVI, HDMI, PCI.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) I/O4 I/O3 54 123 I/O1 GND I/O2 Pin.
