D5V0M2B3LP

2 CHANNEL HIGH SURGE BIDIRECTIONAL TVS DIODE

Diodes

D5V0M2B3LP Features

* Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV

* 2 Channel of ESD Protection

* Low Channel Input Capacitance

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data

* Case: X

D5V0M2B3LP General Description

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players. Applications
* Cellular Handsets.

D5V0M2B3LP Datasheet (267.57 KB)

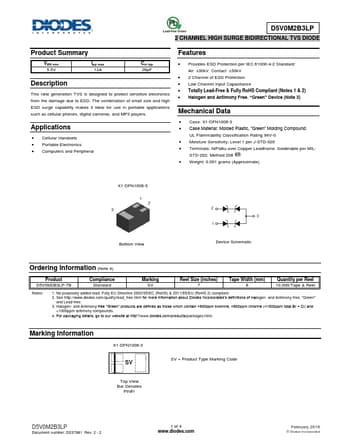

D5V0M2B3LP Datasheet Preview — Preview of D5V0M2B3LP PDF

Datasheet Details

Part number:

D5V0M2B3LP

Manufacturer:

DIODES ↗

File Size:

267.57 KB

Description:

2 channel high surge bidirectional tvs diode.
ADVANCED INNEFWORPRMOADTIUOCNT D5V0M2B3LP 2 CHANNEL HIGH SURGE BIDIRECTIONAL TVS DIODE Product Summary VBR min 5.5V Ipp max 12A Cin typ 28pF Des.
