DCX142TU - DUAL TRANSISTOR

Features

  • Epitaxial Planar Die Construction.
  • Built-In Biasing Resistors.
  • Lead Free/RoHS Compliant (Note 3).
  • "Green" Device (Note 4 and 5) Mechanical Data.
  • Case: SOT-363.
  • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
  • Moisture Sensitivity: Level 1 per J-STD-020C.
  • Terminals: Finish - Matte Tin Solderable per MIL-STD- 202, Method 208.
  • Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadf.

📥 Download Datasheet

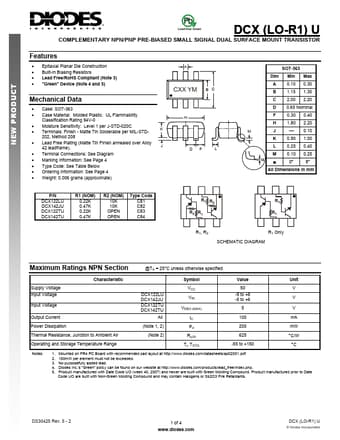

Datasheet preview – DCX142TU
