DDA114EH, DDA114TH - DUAL TRANSISTOR

Name: DDA114EH
SKU: DDA114EH-1101841

Diodes

The DDA114EH by Diodes is a DUAL TRANSISTOR. Below is the official datasheet preview.

Datasheet Details

Part number	DDA114EH, DDA114TH
Manufacturer	DIODES
File Size	256.33 KB
Description	DUAL TRANSISTOR
Datasheet	DDA114TH-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: DDA114EH, DDA114TH. Please refer to the document for exact specifications by model.

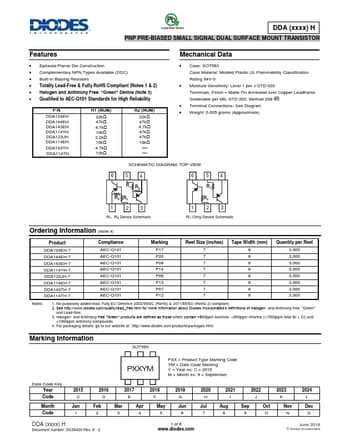

Additional preview pages of the DDA114EH datasheet.

Epitaxial Planar Die Construction.
Complementary NPN Types Available (DDC).
Built-In Biasing Resistors.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability P/N DDA124EH DDA144EH DDA143EH DDA114YH DDA123JH DDA114EH DDA143TH DDA114TH R1 (NOM) 22kΩ 47kΩ 4.7kΩ 10kΩ 2.2kΩ 10kΩ 4.7kΩ 10kΩ R2 (NOM) 22kΩ 47kΩ 4.7kΩ 47kΩ 47kΩ 10kΩ  DDA114TH Mechanical Da.
