* Epitaxial Planar Die Construction
* Complementary NPN Types Available (DDTC)
* Built-In Biasing Resistors, R1 = R2
* Lead Free/RoHS Compliant (Note 2)
* "Green" Device, Note 3 and 4 Mechanical Data
* Case: SC-59
* Case Material: Molded Plastic, "Green" Molding Compound,
DDTA114EKA Datasheet (165.40 KB)
DDTA114EKA
165.40 KB
Pnp pre-biased small signal surface mount transistor.
OBSOLETE

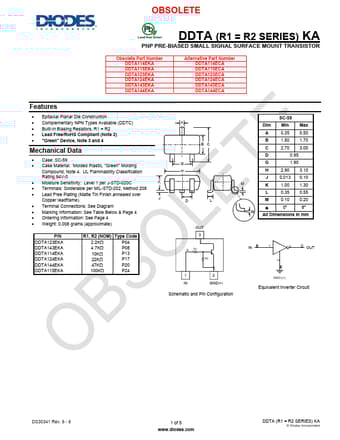

DDTA (R1 = R2 SERIES) KA
PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Obsolete Part Number DDTA114EKA DDTA115EKA DDTA123EKA DDTA124.
