DDTA123TCA - PNP PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR

This page provides the datasheet information for the DDTA123TCA, a member of the DDTA113TCA PNP PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR family.

Datasheet Summary

Features

Epitaxial Planar Die Construction.
Complementary NPN Types Available (DDTC).
Built-In Biasing Resistor, R1 only.
Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 2 and 3) A C TOP VIEW BC Mechanical Data.
Case: SOT-23.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020D.
Terminal Connections: See Diagram.
Terminals: Soldera.

Datasheet Details

Part number	DDTA123TCA
Manufacturer	DIODES
File Size	81.72 KB
Description	PNP PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR
Datasheet	DDTA123TCA Datasheet
Additional preview pages of the DDTA123TCA datasheet.

📁 Similar Datasheet

DDTA123YCA - PNP Digital Transistor (MCC)

DDTB113EC - (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR (Diodes Incorporated)

DDTB113ZC - (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR (Diodes Incorporated)

DDTB114EC - (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR (Diodes Incorporated)

DDTB114GC - (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR (Diodes Incorporated)

DDTB114TC - (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR (Diodes Incorporated)

DDTB122JC - (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR (Diodes Incorporated)

DDTB123EC - (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR (Diodes Incorporated)

DDTB123TC - (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR (Diodes Incorporated)

DDTB123YC - (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR (Diodes Incorporated)

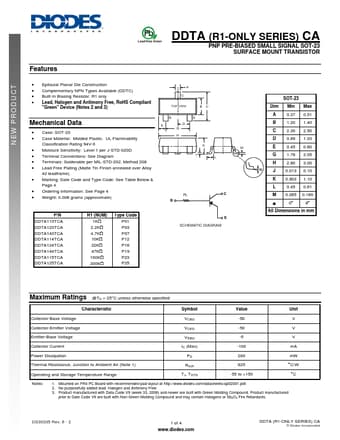

Full PDF Text Transcription
