DDTA142TE - PNP PRE-BIASED 100 mA SURFACE MOUNT TRANSISTOR

Download the DDTA142TE datasheet PDF. This datasheet also covers the DDTA122LE variant, as both devices belong to the same pnp pre-biased 100 ma surface mount transistor family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Epitaxial Planar Die Construction.
  • Complementary NPN Types Available (DDTC).
  • Built-In Biasing Resistors.
  • Lead Free/RoHS Compliant (Note 2).
  • "Green" Device (Note 3 and 4) Mechanical Data.
  • Case: SOT-523.
  • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
  • Moisture Sensitivity: Level 1 per J-STD-020C.
  • Terminals: Finish.
  • Matte Tin Solderable per MIL-STD 202, Method 208.
  • Lead F.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DDTA122LE-Diodes.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
DDTA123YCA PNP Digital Transistor MCC
DDTB113EC (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR Diodes Incorporated
DDTB113ZC (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR Diodes Incorporated
DDTB114EC (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR Diodes Incorporated
DDTB114GC (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR Diodes Incorporated

Other Datasheets by Diodes Incorporated

Part Number Description
DDTA142TU PNP PRE-BIASED 100 mA SURFACE MOUNT TRANSISTOR
DDTA142JE PNP PRE-BIASED 100 mA SURFACE MOUNT TRANSISTOR
DDTA142JU PNP PRE-BIASED 100 mA SURFACE MOUNT TRANSISTOR
DDTA143ECA PRE-BIASED SMALL SIGNAL SURFACE MOUNT PNP TRANSISTOR
DDTA143EE PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

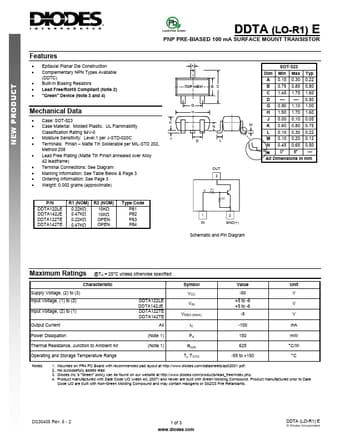

NEW PRODUCT DDTA (LO-R1) E PNP PRE-BIASED 100 mA SURFACE MOUNT TRANSISTOR Features • Epitaxial Planar Die Construction • Complementary NPN Types Available (DDTC) • Built-In Biasing Resistors • Lead Free/RoHS Compliant (Note 2) • "Green" Device (Note 3 and 4) Mechanical Data • Case: SOT-523 • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020C • Terminals: Finish – Matte Tin Solderable per MIL-STD 202, Method 208 • Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe) • Terminal Connections: See Diagram • Marking Information: See Table Below & Page 3 • Ordering Information: See Page 3 • Weight: 0.002 grams (approximate) K J P/N DDTA122LE DDTA142JE DDTA122TE DDTA142TE R1 (NOM) 0.22KΩ 0.47KΩ 0.22KΩ 0.
