DDTA143EE, DDTA123EE PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

DDTA143EE Description

DDTA (R1 = R2 SERIES) EE PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR .

DDTA143EE Features

* Epitaxial Planar Die Construction
* Complementary NPN Types Available (DDTC)
* Built-In Biasing Resistors, R1 R2
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for High Reliab

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DDTA143EE, DDTA123EE. Please refer to the document for exact specifications by model.

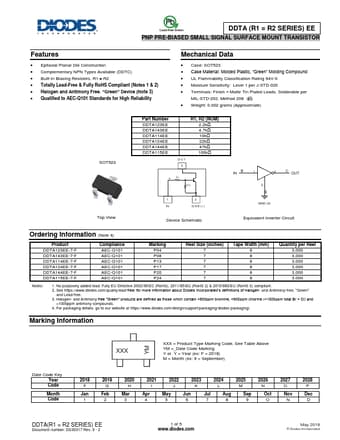

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DDTA143EE, DDTA123EE
Manufacturer
DIODES ↗
File Size
438.23 KB
Datasheet
DDTA123EE-Diodes.pdf
Description
PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: DDTA143EE, DDTA123EE.
Please refer to the document for exact specifications by model.
