DDTA144GUA, DDTA114GUA - PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Name: DDTA144GUA
SKU: DDTA144GUA-1296937

Diodes

The DDTA144GUA by Diodes is a PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR. Below is the official datasheet preview.

Datasheet Details

Part number	DDTA144GUA, DDTA114GUA
Manufacturer	DIODES
File Size	84.68 KB
Description	PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTA114GUA-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: DDTA144GUA, DDTA114GUA. Please refer to the document for exact specifications by model.

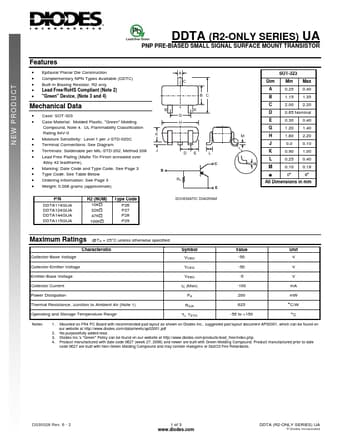

Additional preview pages of the DDTA144GUA datasheet.

Epitaxial Planar Die Construction.
Complementary NPN Types Available (DDTC).
Built-In Biasing Resistor, R2 only.
Lead Free/RoHS Compliant (Note 2).
"Green" Device, (Note 3 and 4) Mechanical Data.
Case: SOT-323.
Case Material: Molded Plastic, "Green" Molding Compound, Note 4. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminal Connections: See Diagram.
Termina.
