DDTC123JE - NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

This page provides the datasheet information for the DDTC123JE, a member of the DDTC113ZE NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR family.

Datasheet Summary

Features

Epitaxial Planar Die Construction.
Complementary PNP Types Available (DDTA).
Built-In Biasing Resistors, R1≠R2.
Lead Free/RoHS Compliant (Note 2).
"Green" Device (Note 3 and 4) Mechanical Data.
Case: SOT-523.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminals: Solderable per MIL-STD-202, Method 208.
Lead Free Plating (Matte.

Datasheet Details

Part number	DDTC123JE
Manufacturer	DIODES
File Size	141.98 KB
Description	NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTC123JE Datasheet

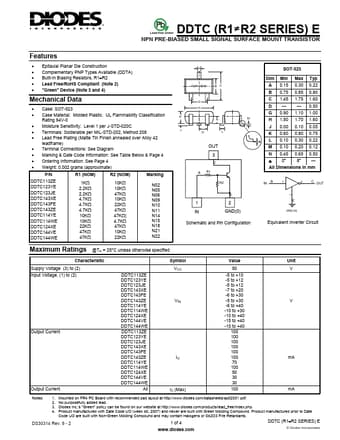

Additional preview pages of the DDTC123JE datasheet.
