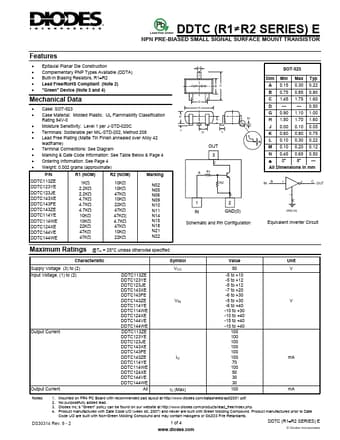

DDTC143ZE
DDTC143ZE is NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR manufactured by Diodes Incorporated.
- Part of the DDTC113ZE comparator family.
- Part of the DDTC113ZE comparator family.
atures
- Epitaxial Planar Die Construction
- plementary PNP Types Available (DDTA)
- Built-In Biasing Resistors, R1≠R2
- Lead Free/Ro HS pliant (Note 2)
- "Green" Device (Note 3 and 4)
Mechanical Data
- Case: SOT-523
- Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020C
- Terminals: Solderable per MIL-STD-202, Method 208
- Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe)
- Terminal Connections: See Diagram
- Marking & Date Code Information: See Table Below & Page 4
- Ordering Information: See Page 4
- Weight: 0.002 grams (approximate)
P/N
R1 (NOM)
R2 (NOM)
Marking
DDTC113ZE DDTC123YE DDTC123JE DDTC143XE DDTC143FE DDTC143ZE DDTC114YE DDTC114WE DDTC124XE DDTC144VE DDTC144WE
1KΩ 2.2KΩ 2.2KΩ 4.7KΩ 4.7KΩ 4.7KΩ 10KΩ 10KΩ 22KΩ 47KΩ 47KΩ
10KΩ 10KΩ 47KΩ 10KΩ 22KΩ...
