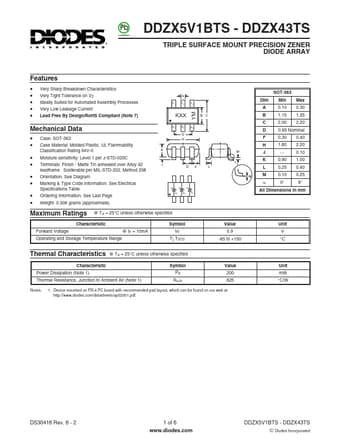

DDZX11CTS, DDZX5V1BTS - TRIPLE SURFACE MOUNT PRECISION ZENER DIODE

Diodes

Datasheet Details

Part number	DDZX11CTS, DDZX5V1BTS
Manufacturer	DIODES ↗
File Size	153.94 KB
Description	TRIPLE SURFACE MOUNT PRECISION ZENER DIODE
Datasheet	DDZX5V1BTS-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: DDZX11CTS, DDZX5V1BTS. Please refer to the document for exact specifications by model.

Very Sharp Breakdown Characteristics.
Very Tight Tolerance on VZ.
Ideally Suited for Automated Assembly Processes.
Very Low Leakage Current.
Lead Free By Design/RoHS Compliant (Note 7) A C1 C2 C3 KXX BC YM Mechanical Data.
Case: SOT-363.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture sensitivity: Level 1 per J-STD-020C.
Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe. Solderable per MIL-STD.
