DESD1LIN2WSQ

LIN-BUS BIDIRECTIONAL TVS DIODE

Diodes

DESD1LIN2WSQ Features

* Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV

* 1 Channel of ESD Protection

* Low Channel Input Capacitance

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* Qualified to AEC-Q101 S

DESD1LIN2WSQ General Description

and Applications This DESD1LIN2WSQ is a next generation ESD and surge protection device packaged in a small footprint surface mount package. It is qualified to AECQ101, supported by a PPAP and is designed to protect one data line of the Local Information Network (LIN) in an automotive.
* LIN Bus.

DESD1LIN2WSQ Datasheet (309.68 KB)

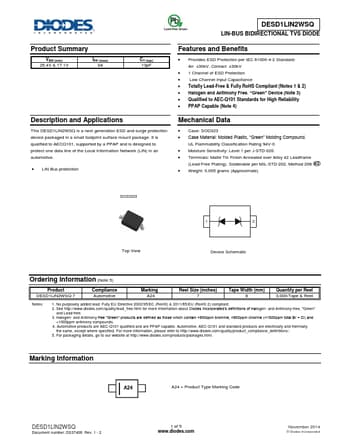

DESD1LIN2WSQ Datasheet Preview — Preview of DESD1LIN2WSQ PDF

Datasheet Details

Part number:

DESD1LIN2WSQ

Manufacturer:

DIODES ↗

File Size:

309.68 KB

Description:

Lin-bus bidirectional tvs diode.
ADVANACDEVDAINNCFEO IRNMFAOTIROMNATION DESD1LIN2WSQ LIN-BUS BIDIRECTIONAL TVS DIODE Product Summary VBR (min) 25.4V & 17.1V IPP (max) 3A CT (typ).
