DGD0506A Datasheet, Driver, Diodes

DGD0506A Features

  • Driver
  • 50V Floating High-Side Driver
  • Drives Two N-Channel MOSFETs in a Half-Bridge Configuration
  • 1.5A Source / 2.0A Sink Output Current Capability
  • Inter

PDF File Details

Part number:

DGD0506A

Manufacturer:

DIODES ↗

File Size:

905.01kb

Download:

📄 Datasheet

Description:

High frequency half-bridge gate driver. The DGD0506A is a high-frequency half-bridge gate driver capable of driving N-channel MOSFETs in a half-bridge configuration. The flo

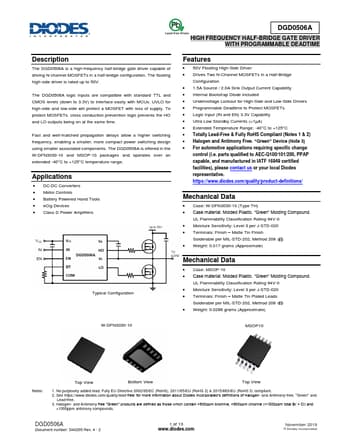

Datasheet Preview: DGD0506A 📥 Download PDF (905.01kb)
Page 2 of DGD0506A Page 3 of DGD0506A

DGD0506A Application

  • Applications
  • DC-DC Converters
  • Motor Controls
  • Battery Powered Hand Tools
  • eCig Devices
  • Class D Power
