DGD21064

HIGH-SIDE AND LOW-SIDE GATE DRIVER

DGD21064 Features

* Floating High-Side Driver in Bootstrap Operation to 600V

* Drives Two N-Channel MOSFETs or IGBTs in Half Bridge Configuation

* Outputs Tolerant to Negative Transients

* Wide Logic and Low-Side Gate Driver Supply Voltage: 10V to 20V

* Wide Logic Supply Voltage Offset Voltage: -5

DGD21064 General Description

The DGD21064 is a high voltage / high speed gate driver capable of driving N-Channel MOSFETs and IGBTs in a half bridge configuration. High voltage processing techniques enable the DGD21064’s high-side to switch to 600V in a bootstrap operation. The DGD21064 logic inputs are compatible with standard.

DGD21064 Datasheet (704.20 KB)

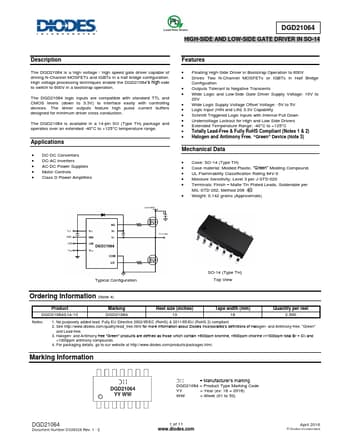

Preview of DGD21064 PDF

Datasheet Details

Part number:

DGD21064

Manufacturer:

DIODES ↗

File Size:

704.20 KB

Description:

High-side and low-side gate driver.
